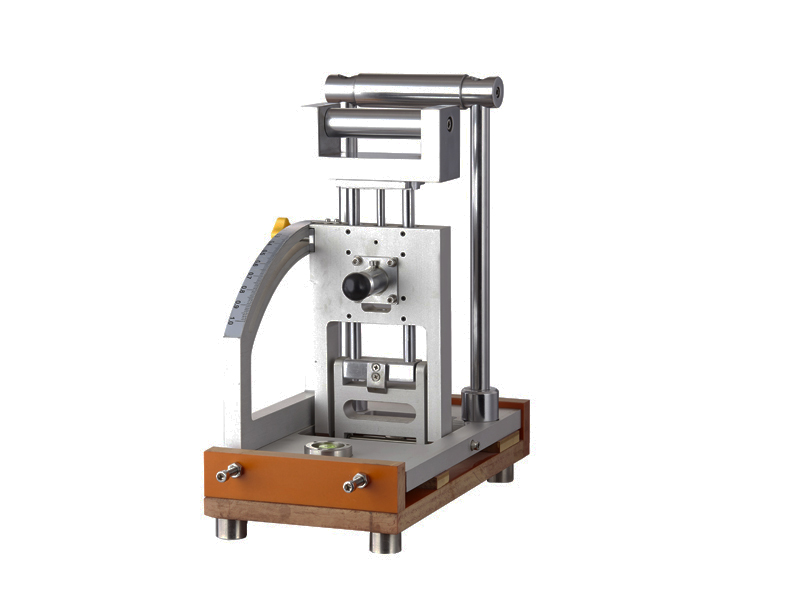

MARK II Slip Resistance Tester

Portable Inclineable Articulated Strut Slip Tester Manufacturer

MARK II Slip Resistance Tester is one of frequently used footwear testing machines, which is designed to measure the slip resistance of footwear sole, heel, or related materials(test feet) against planar walkway surfaces or walkway surrogates(test surfaces) in either the laboratory or the field under dry, wet, or contaminated conditions.

Test Standard

ASTM -F1677 Standard test method for using a portable inclineable articulated strut slip tester(PIAST)

Main Technical Parameters

Model	AT-F3017
Load(Weight)	10 lb (4.5 kg)
Slide Guiding-rod	φ12 mm
Specimen Size	3″ × 3″（76.2 × 76.2 mm）
Test Surface	4″×4″ above
Ground limitation	Applicable to level and rigid ground
Rotating Support Thickness	1.25″ (31.8 mm)
Main frame (Thickness of Base Plate)	3/4″
Specimen Distance from Ground	1/8″ ~ 1/4″ (by increasing/decreasing pads for control, measured by the thickness gauge)
Dimension	40 × 22 × 39 cm
Weight	15 kg
Accessories	Thickness gage (Measure the distance between the bottom of the sample and the tiles) Mark II Special ceramic tile Sample holder Magnet (for fastening sample), etc.

Mark II Portable Inclineable Articulated Strut Slip Tester Features

Frame and components are formed from premium steel.
Design is based on the ratio of a load of horizontal force and vertical force.
Mainly used to determine the slip resistance of footwear soles and heels.
It is Lightweight and portable.
Easy for testers to operate and maintain.
