Leather Thickness Tester China Supplier

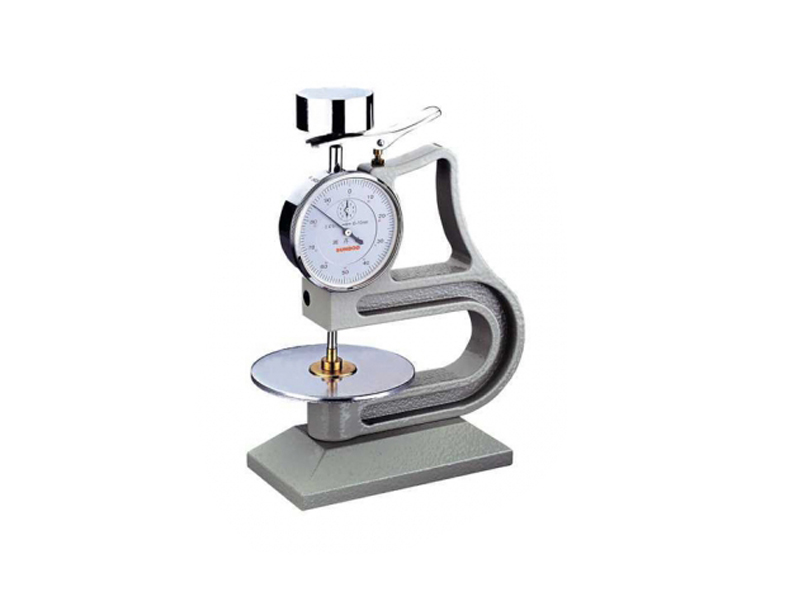

Leather Thickness Gauge is a piece of testing equipment intended to determine the thickness of leather.
The leather is placed in the gauge. The measurement is performed manually under a specified load for a specified period, and the thickness can be read directly.
It is suitable for all kinds of leather and valid for both the whole leather and a test sample.
Test Standards
- ISO 2589 Leather-Physical and mechanical tests-determination of thickness
- QB/T 2709 Leather-Physical and mechanical tests-determination of thickness
Main Technical Parameters
| Model | AT-L9008 |
| Display | Digital display |
| Measurement Range | 0.01 mm ~ 12.7 mm |
| Accuracy | 0.01 mm |
| Anvil | Flat horizontal surface of cylinder diameter: 10 mm
Projecting above the surface: 3 mm Concentric flat circular platform of diameter: 50 mm |
| Presser Foot | Flat circular surface of diameter 10 mm |
| Pressure | 49.1 ± 1.2 kPa |
| Load | 393g ± 10 g |
| Test Standards | ASTM D1813
ISO 2589 QB/T 2709 |
| Load Time Applied | 5 second |
| Power | Battery |
| Dimension | Φ14.5 cm × 20 cm(H) |
| Weight | 3 kg |
Digital Leather Thickness Gauge Features
- Characterized by compact dimension and decent appearance.
- Fitted with an LCD to display testing values.
- It is powered by a replaceable battery.
- The minimum value to be measured is as low as 0.01 mm.
- It is easy to use and maintain.
Leather thickness Test Procedure
- Gauge is placed on a flat and horizontal surface.
- Place the test piece in the machine with the grain side up If It can be identified (place the specimen in the gauge with either surface upwards If the grain can’t be recognizable).
- Exert the load gently and record the thickness.
